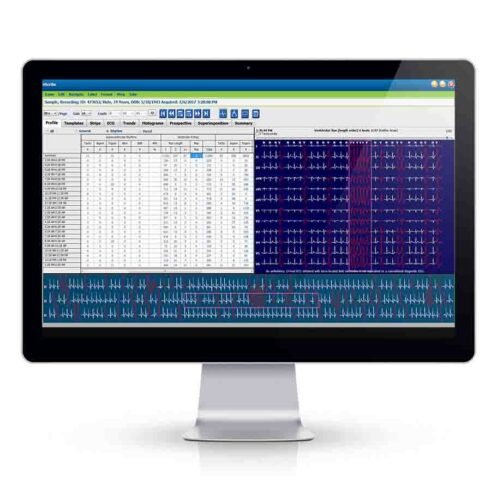

      HScribe Holter Analysis System

      HScribe Holter Analysis System

      $20,200.00

      Category

      Free shipping for orders over $200

      Free gift wrapping

      Related Products

      Proud To Be A Nurse Canvas Backpacks for Women Men School College Student Bookbag Fits 15 Inch Laptop Health Care Nursing Bags

      $30.08 – $31.21

      Unisex Jogger Pants Dentist Pants Solid Color Beauty Salon Nursing Men Jogging Pants Spa Uniform Pants Pet Medical Doctor Scrub

      $29.82 – $31.59

      Clinical Uniforms Woman Uniforme Clinica Dental Joggers Scrubs Scrub Suit Medical Hospital Scrubs Uniforms Sets Spa Work Wear

      $22.43 – $37.24

      Welch Allyn HScribe Holter Analysis System Features

      • Continuous 12-lead Holter analysis system configured for clinical research.
      • Integrates with Surveyor systems for complete Holter analysis and ECG export.
      • Export ECG waveform in XML format (FDA required) for selected time points.
      • Identify subject data by protocol with database on PC or redundant server.
      • Multiple workstations can acquire, review, and generate reports within a shared DB.
      • Export 10-second, 12-lead ECG data to E-Scribe system for further analysis.

      Specifications

      Welch Allyn HScribe Holter Analysis System Specifications

      • Workstation Minimum Specifications:
        • Processor: Performance equivalent to an Intel Core i3.
        • Graphics: 1280 x 1024 (1920 x 1080 recommended).
        • RAM: 4 GB.
        • Operating System: Microsoft Windows 7 Professional 32-bit or 64-bit; Microsoft Windows 8.1 Professional 64 bit; Microsoft Windows 10 Pro 64 bit.
        • Hard Drive Capacity: 160 GB.
        • Archive: Network or external USB drive.
        • Input Devices: USB Standard keyboard and 2-button scroll mouse.
        • Software Installation: CD-ROM.
        • Network: 100 Mbps connection or better.
        • Printing Devices:
          • HP M604n Laser printer (tested).
          • HP PCL5-compatible printer series (recommended).
        • USB Ports: 2 free USB 2.0 ports.
      • Server Minimum Specifications:
        • Processor: Performance Equivalent to Intel Xeon class, Quad-Core with hyper-threading.
        • Graphics: 1024 x 768.
        • RAM: 4 GB.
        • Operating System: Microsoft Windows 2008 or 2012 server R2, 64-bit.
        • System Disk: 100 GB for OS and product installation (RAID recommended for data redundancy).
        • Data Disks:
          • 550 GB hard drive space available.
          • HD controller with 128 MB read/write cache (RAID recommended for data redundancy).
        • Archive: Network or external USB drive.
        • Software Installation: CD-ROM.
        • Network: 100 Mbps connection or better.
        • Input Devices: Standard keyboard and mouse.
      • Connectivity Interfaces:
        • Orders:
          • XML:
            • Mortara XML.
            • Accepts orders via XML files saved by external system in a shared folder.
          • DICOM Modality Worklist: Able to retrieve Holter test orders from a DICOM Service Class Provider (SCP) by performing a DICOM Modality Worklist query.
          • HL7: By adding optional Mortara HL7 Gateway.
        • DICOM Modality Worklist Query Parameters:
          • Modality.
          • Institution Name.
          • Scheduled Station Name.
          • Scheduled Procedure Step Location.
          • Current Patient Location.
          • Requested Procedure Location.
          • Scheduled Procedure Step Description.
          • Scheduled Station AE Title.
          • Number of Days Before and After “Today”.
          • Requested Procedure Description.
        • Export Formats Supports exporting data in the following formats:
          • PDF.
          • XML.
          • DICOM.
          • HL7: By adding optional Mortara HL7 Gateway.
      • Physical Characteristics:
        • Operating Temperature: +10 degrees C to +35 degrees C (+50 degrees F to +95 degrees F).
        • Storage Temperature: -40 degrees to +65 degrees C (-40 degrees to +149 degrees F).
        • Operating/Storage Humidity: 8% to 80%, non-condensing.
        • Altitude (Pressure): 3,000 meters.
