Revolutionary Imaging Technology

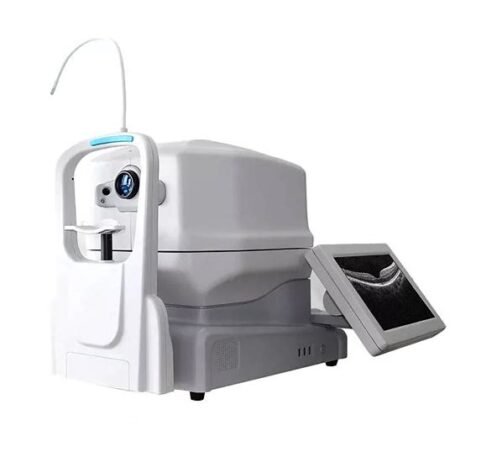

Experience the pinnacle of ocular diagnostics with the MOCT500 Optical Coherence Tomography (OCT) system. This cutting-edge device combines advanced spectral domain OCT methodology with remarkable precision, making it the ideal choice for professionals seeking unparalleled versatility in ophthalmic imaging. With capabilities designed for comprehensive analysis, the MOCT500 sets a new standard in OCT technology.

Impressive Specifications for Enhanced Diagnostics

The MOCT500 provides an axial resolution of ≤ 6 µm in tissue, ensuring that even the most minute anatomical details can be captured with clarity. Its transverse resolution is equally impressive, reaching ≤ 20 µm in tissue, allowing healthcare providers to gain deeper insights into the patient’s eye health. Additionally, with a minimum scan depth of ≥ 2.5 mm in air and a minimum scan range of ≥ 6 mm, this system covers a wide area effectively, facilitating thorough examinations.

User-Friendly and Versatile Features

The MOCT500 isn’t just about high specifications; it’s designed for ease of use. Equipped with a user-friendly 13.3-inch touchscreen interface and compatibility with external mice or keyboards, operators can navigate effortlessly through processes. The device supports high-speed scanning, performing up to 36,000 A-scans/sec, making it suitable for diverse scanning modes, including 30°, Raster, and Circle scans. The OCT en face fundus imaging feature further enhances its diagnostic capabilities, leading to better patient outcomes.

The system also supports precision focus adjustments ranging from -150 to 150, accommodating various patient needs. It ensures optimal results even with pupil diameters of ≥ 3 mm. Enhanced imaging is achieved through an 840 nm SLD light source, safely delivering 750 µW optical power at the cornea. The MOCT500’s compact design (497 mm × 395 mm × 490 mm) makes it portable, weighing only 34 kg (75 lbs), while maintaining a sleek and modern aesthetic. This system is compatible with a range of power inputs (100-240 V, 50/60 Hz), ensuring versatility in different clinical environments.

Invest in the future of ophthalmic imaging with the MOCT500 Optical Coherence Tomography system. Its advanced capabilities not only empower healthcare professionals to deliver optimal care but also enhance the diagnostic journey for patients. Unlock the potential for superior eye health management today!
